Set floor

---

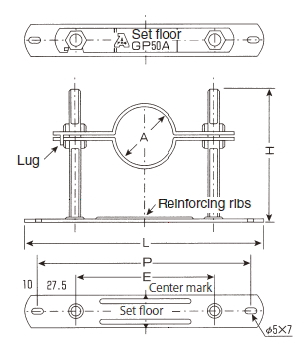

※For details of dimensions, please check the approval request diagram (PDF) below. ■Approval request diagram(PDF format) Ａ13531　Set floor ・A13531＿Set floor＿SGP･VP15A〜100A.pdf ・A13531＿Set floor＿SGP･VP125A、150A.pdf Ａ13532　Set floor for TN pipe ・A13532＿Set floor for TN pipe＿TN-40〜TN-100.pdf ・A13532＿Set floor for TN pipe＿TN-125、TN-150.pdf Ａ15367　Stainless steel set floor ・A15367＿Stainless steel set floor＿15A〜100A.pdf ・A15367＿Stainless steel set floor＿125A、150A.pdf Ａ15368　Stainless steel set floor for TN pipe ・A15368＿Stainless steel set floor for TN pipe＿TN-40〜TN-100.pdf ・A15368＿Stainless steel set floor for TN pipe＿TN-125、TN-150.pdf Adobe Reader of Adobe Systems Incorporated is necessary to see the approval request drawing (PDF format). 　 Level adjustment band for drainage pipe (SGP/VP) Part number Ａ13531 Set floor Units (�o) Diameter size（Ａ） Applicable pipe outer diameter H Size code Level range L P E 　15A 　21.7 120H 0124 20 to 110 138 118 63 150H 0162 20 to 140 　20A 　27.2 120H 0139 20 to 110 138 118 63 150Ｈ 0177 20 to 140 　25A 　34.0 120H 0143 25 to 110 138 118 63 150H 0181 25 to 140 　32A 　42.7 120H 0158 30 to 110 190 170 115 150H 0196 30 to 140 　40A 　48.6 120H 0016 33 to 110 190 170 115 150H 0035 33 to 140 　50A 　60.5 120H 0040 39 to 110 190 170 115 150H 0054 39 to 140 　65A 　76.3 120H 0069 47 to 110 190 170 115 150H 0073 47 to 140 　80A 　89.1 120H 0088 53 to 110 190 170 115 150H 0092 53 to 140 100A 114.3 120H 0105 62 to 110 225 205 150 150H 0110 62 to 140 125A 139.8 180H 0815 75 to 170 310 290 235 150A 165.2 180H 0820 88 to 170 310 290 235 Level adjustment band for drainage pipe (FDP) Part number Ａ13532 Set floor for TN pipe Units (�o) Diameter size（Ａ） Applicable pipe outer diameter H Size code Level range L P E 　40A 　63 120H 0013 37 to 110 190 170 115 150H 0028 37 to 140 　50A 　76 120H 0032 43 to 110 190 170 115 150H 0047 43 to 140 　65A 　92 120H 0051 51 to 110 225 205 150 150H 0066 51 to 140 　75A 106 120H 0085 58 to 110 225 205 150 150H 0090 58 to 140 100A 132 120H 0102 71 to 110 255 235 180 150H 0117 71 to 140 125A 159 180H 0456 85 to 170 310 290 235 150A 187 180H 0475 99 to 170 310 290 235 Level adjustment band for drainage pipe (SGP/VP) Part number Ａ15367　Stainless steel set floor Units (�o) Diameter size（Ａ） Applicable pipe outer diameter H Size code Level range L P E 　15A 　21.7 120H 0017 20 to 110 138 118 　63 150H 0021 20 to 140 　20A 　27.2 120H 0036 20 to 110 138 118 　63 150H 0055 20 to 140 　25A 　34.0 120H 0060 25 to 110 138 118 　63 150H 0074 25 to 140 　32A 　42.7 120H 0089 30 to 110 190 170 115 150H 0093 30 to 140 　40A 　48.6 120H 0106 33 to110 190 170 115 150H 0125 33 to 140 　50A 　60.5 120H 0130 39 to110 190 170 115 150H 0144 39 to 140 　65A 　76.3 120H 0159 47 to 110 190 170 115 150H 0163 47 to 140 　80A 　89.1 120H 0178 53 to 110 190 170 115 150H 0182 53 to 140 100A 114.3 120H 0197 62 to 110 225 205 150 150H 0200 62 to 140 125A 139.8 180H 0214 75 to 170 310 290 235 150A 165.2 180H 0229 88 to 170 310 290 235 Level adjustment band for drainage pipe (FDP) Part number Ａ15368　Stainless steel set floor for TN pipe Units (�o) Diameter size（Ａ） Applicable pipe outer diameter H Size code Level range L P E 　40A 　63 120H 0014 37 to 110 190 170 115 150H 0029 37 to 140 　50A 　76 120H 0033 43 to 110 190 170 115 150H 0048 43 to 140 　65A 　92 120H 0052 51 to110 225 205 150 150H 0067 51 to140 　75A 106 120H 0071 58 to 110 225 205 150 150H 0086 58 to140 100A 132 120H 0103 71 to110 255 235 180 150H 0118 71 to140 125A 159 180H 0122 85 to170 310 290 235 150A 187 180H 0137 99 to 170 310 290 235

---
