| ¦For details of dimensions, please check the approval request diagram (PDF)
below. |
|
|
|
 |
Adobe Reader of Adobe Systems Incorporated is necessary to see the approval request drawing (PDF format). |
|
|

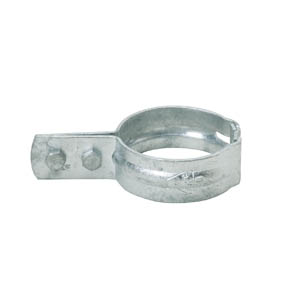

| ‘Assembled vertical band for SGP pipe |
| @ |
| Part number A11212 Dip-plated assembled band |
Units (o) |
| Size code |
Diameter size(A)
|
Nominal
diameter
(B) |
Applicable pipe
outer diameter |
|
b |
Tightening bolt
Dia. ~ Length |
D |
P |
F |
0015
0020
0034
0049
0053 |
@15`
@20`
@25`
@32`
@40` |
1/2
3/4
P
P 1/4
P 1/2 |
@21.7
@27.2
@34.0
@42.7
@48.6 |
1.2
1.2
1.2
2.0
2.0 |
25
25
25
25
25 |
l 6~20
l 6~20
l 6~20
l 6~20
l 6~20 |
45
45
45
45
45 |
20
20
20
20
20 |
6
6
6
6
6 |
0068
0072
0087
0091
0104 |
@50`
@65`
@80`
100`
125` |
Q
Q 1/2
R
S
T |
@60.5
@76.3
@89.1
114.3
139.8 |
2.0
2.6
2.6
2.6
2.6 |
25
32
32
32
38 |
l 6~20
l 8~25
l 8~25
l 8~25
l10~30 |
45
45
45
45
65 |
20
20
20
20
30 |
6
6
6
6
8 |
0119
0123 |
150`
200` |
U
W |
165.2
216.3 |
3.2
3.2 |
50
50 |
l12~45
l12~45 |
70
70 |
33
33 |
8
8 |
|
 |
|
