| ¦For details of dimensions, please check the approval request diagram (PDF) below. |
|
|
|
 |
Adobe Reader of Adobe Systems Incorporated is necessary to see the approval request drawing (PDF format). |
|
|

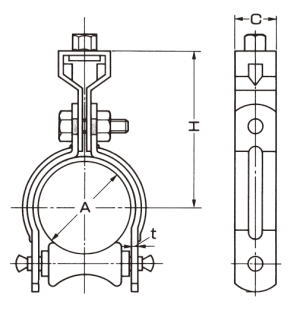

‘Roller band for thermal expansion/contraction pipes
|
| @ |
| Part number A11217 Stainless steel assembled roller |
Units (o) |
| Size code |
Diameter size
(A) |
Nominal diameter
(B) |
Applicable pipe outer diameter |
t |
C |
Bolts used |
Hanging bolt diameter |
H |
0011
0026
0045
0050
0064 |
@20A
@25A
32A/40A
@50A
@65A |
3/4
1
1 1/4E1 1/2
2
2 1/2 |
@27.2
@34.0
42.7/48.6
@60.5
@76.3 |
1.5
1.5
2.0
2.0
2.5 |
25
25
25
25
32 |
M6~20
M6~20
M6~20
M6~20
M8~25 |
W3/8
W3/8
W3/8
W3/8
W3/8 |
@70
@75
88/85
@90
104 |
0079
0083 |
@80A
100A |
3
4 |
@89.1
114.3 |
2.5
2.5 |
32
32 |
M8~25
M8~25 |
W3/8
W3/8 |
110
128 |
|
|
