| ¦For details of dimensions, please check the approval request diagram (PDF) below. |
|
|
|
 |
Adobe Reader of Adobe Systems Incorporated is necessary to see the approval request drawing (PDF format). |
|
|
‘Saddle band for outer surface coated steel pipe
|
| @ |

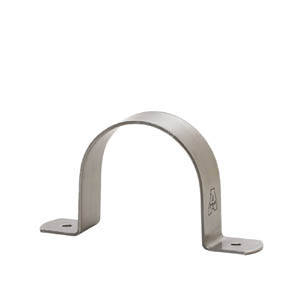

| Part number A10455 Stainless steel saddle for CL pipe |
Units (o) |
| Size code |
Diameter size
(A) |
Nominal diameter
(B) |
Applicable pipe outer diameter |
t |
C |
G |
P |
0019
0023
0038
0042
0057 |
@15A
@20A
@25A
@32A
@40A |
1/2
3/4
1
1 1/4
1 1/2 |
@25.7
@31.2
@37.6
@46.3
@52.2 |
2.0
2.0
2.0
2.0
2.0 |
25
25
25
25
25 |
³5
³5
³5
³5
³5 |
@54
@60
@66
@75
@81 |
0061
0076
0095
0108 |
@50A
@65A
@80A
100A |
2
2 1/2
3
4 |
@64.1
@79.9
@92.7
118.3 |
2.0
2.0
2.0
2.0 |
25
25
25
25 |
³5
³5
³5
³5 |
@93
116
128
153 |
 |
|
|
