| ※For details of dimensions, please check the approval request diagram (PDF) below. |
|
|
|
 |
Adobe Reader of Adobe Systems Incorporated is necessary to see the approval
request drawing (PDF format). |
|
|

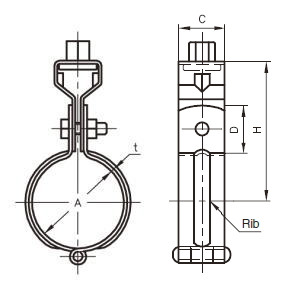

| ■Hinged hanging band for stainless steel pipe (thick-walled) |
Part number A10199
Stainless steel hanging band with turnbuckle
|
Units (㎜) |
| Size code |
Diameter size(A) |
Nominal
diameter
(B) |
Applicable pipe
outer diameter |
ｔ |
C |
Tightening bolt
Dia. × Length |
D |
H |
Hanging
bolt
diameter |
0017
0021
0036
0055
0060 |
15A
20A
25A
32A
40A |
1/2
3/4
1
1 1/4
1 1/2 |
21.7
27.2
34.0
42.7
48.6 |
2.0
2.0
2.0
2.0
2.0 |
25
25
25
25
25 |
M 6×20
M 6×20
M 6×20
M 6×20
M 6×20 |
26
26
26
26
26 |
62
64
68
73
76 |
W3/8
W3/8
W3/8
W3/8
W3/8 |
0074
0089
0093
0106
0125 |
50A
65A
80A
90A
100A |
2
2 1/2
3
3 1/2
4 |
60.5
76.3
89.1
101.6
114.3 |
2.0
2.3
2.3
2.3
2.3 |
25
25
25
25
25 |
M 6×20
M 8×25
M 8×25
M 8×25
M 8×25 |
26
26
26
26
26 |
82
90
97
103
110 |
W3/8
W3/8
W3/8
W3/8
W3/8 |
0130
0144
0159
0163
0178 |
125A
150A
200A
250A
300A |
5
6
8
10
12 |
139.8
165.2
216.3
267.4
318.5 |
3.0
3.0
3.0
4.0
4.0 |
32
32
32
50
50 |
M10×35
M12×40
M12×40
M16×50
M16×50 |
36
36
36
57
57 |
142
155
180
242
267 |
W1/2
W1/2
W1/2
W5/8
W5/8 |
|
|
