| ※For details of dimensions, please check the approval request diagram (PDF)
below. |
|
|
|
 |
Adobe Reader of Adobe Systems Incorporated is necessary to see the approval request drawing (PDF format). |
|
|

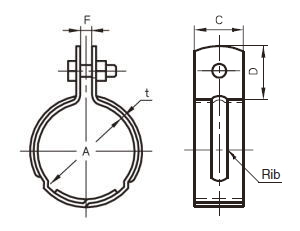

| ■Assembled hanging band for SGP pipe |
Part number A11208
Dip-plated assembled hanging band without turnbuckle
|
Units (㎜) |
| Size code |
Diameter size
(A) |
Nominal
diameter
(B) |
Applicable pipe
outer diameter |
ｔ |
Ｃ |
Tightening bolt
Dia. × Length |
D |
F |
0012
0027
0031
0046
0065 |
15A
20A
25A
32A
40A |
1/2
3/4
1
1 1/4
1 1/2 |
21.7
27.2
34.0
42.7
48.6 |
1.2
1.2
1.2
2.0
2.0 |
25
25
25
25
25 |
M 6×20
M 6×20
M 6×20
M 6×20
M 6×20 |
27
27
27
27
27 |
6
6
6
6
6 |
0070
0084
0099
0101
0116 |
50A
65A
80A
90A
100A |
2
2 1/2
3
3 1/2
4 |
60.5
76.3
89.1
101.6
114.3 |
2.0
2.6
2.6
2.6
2.6 |
25
32
32
32
32 |
M 6×20
M 8×25
M 8×25
M 8×25
M 8×25 |
27
32
32
32
32 |
6
6
6
6
6 |
0135
0140
0154 |
125A
150A
200A |
5
6
8 |
139.8
165.2
216.3 |
2.6
3.2
3.2 |
38
50
50 |
M10×30
M12×45
M12×45 |
32
40
40 |
8
8
8 |
|
 |
