A-type hopper, external thread

---

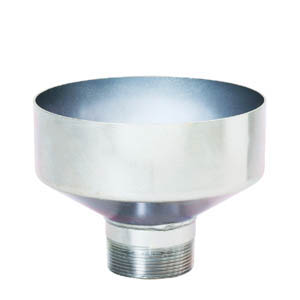

A10680 A-type hopper, external thread Steel, electrogalvanized finish A10685 Stainless steel A-type hopper, external thread (SUS 304) Made to order SUS304 ※For details of dimensions, please check the approval request diagram (PDF) below. 　 ■Approval request diagram(PDF format) A10680_A-type hopper, external thread_φ50x20A、25A.pdf A10680_A-type hopper, external thread_φ65x20A to 40A.pdf A10680_A-type hopper, external thread_φ80x20A to 50A.pdf A10680_A-type hopper, external thread_φ100x25A to 50A.pdf A10680_A-type hopper, external thread_φ125x32A to 65A.pdf A10680_A-type hopper, external thread_φ150x32A to 80A.pdf A10680_A-type hopper, external thread_φ200x32A to 100A.pdf A10680_A-type hopper, external thread_φ250x65A to 100A.pdf 　 A10685_Stainless steel A-type hopper, external thread_ 　φ65x20A to 40A.pdf A10685_Stainless steel A-type hopper, external thread_ 　φ80x20A to 50A.pdf A10685_Stainless steel A-type hopper, external thread_ 　φ100x20A to 65A.pdf A10685_Stainless steel A-type hopper, external thread_ 　φ125x32A to 80A.pdf A10685_Stainless steel A-type hopper, external thread_ 　φ150x32A to 100A.pdf A10685_Stainless steel A-type hopper, external thread_ 　φ200x32A to 100A.pdf A10685_Stainless steel A-type hopper, external thread_ 　φ250x65A to 100A.pdf 　 Adobe Reader of Adobe Systems Incorporated is necessary to see the approval request drawing (PDF format). 　 ■Pan fitting for indirect drain water 　 Part number A10680 A-type hopper, external thread Units (�o) Size code Thread diameter Inlet ID H C E 0012 0027 　20A 　25A Φ 50 　94 　99 30 34 25 30 0031 0046 0065 0070 　20A 　25A 　32A 　40A Φ 65 　99 103 　90 　88 31 31 30 29 26 29 31 34 0084 0099 0101 0116 0135 　20A 　25A 　32A 　40A 　50A Φ 80 101 　98 　95 　93 　85 37 35 34 35 34 26 29 32 35 36 0140 0154 0169 0173 　25A 　32A 　40A 　50A Φ100 108 120 110 106 49 49 51 50 29 32 33 36 0188 0192 0205 0351 　32A 　40A 　50A 　65A Φ125 111 111 111 104 49 48 49 48 31 33 36 39 0210 0224 0239 0347 0332 　32A 　40A 　50A 　65A 　80A Φ150 120 118 115 116 113 49 48 49 49 49 31 33 36 41 43 0243 0258 0262 0277 0281 0296 　32A 　40A 　50A 　65A 　80A 100A Φ200 149 152 155 150 148 140 57 60 58 60 60 58 31 33 36 40 44 47 0309 0313 0328 　65A 　80A 100A Φ250 190 194 190 99 96 98 39 42 46 Part number A10685 Stainless steel A-type hopper, external thread (SUS 304) Units (�o) Size code Thread diameter Inlet ID H C E 0019 0023 　20A 　25A Φ 50 Made to order 0038 0042 0057 0061 　20A 　25A 　32A 　40A Φ 65 0076 0095 0108 0112 0127 　20A 　25A 　32A 　40A 　50A Φ 80 0146 0165 0170 0184 　25A 　32A 　40A 　50A Φ100 0201 0216 0235 0240 　32A 　40A 　50A 　65A Φ125 0269 0273 0288 0292 0305 　32A 　40A 　50A 　65A 　80A Φ150 0324 0339 0343 0358 0362 0377 　32A 　40A 　50A 　65A 　80A 100A Φ200 0381 0396 0409 　65A 　80A 100A Φ250 *Sheet thickness Φ50 to Φ150 Φ200 Φ250 Steel 1.6mm 1.6mm 2.3mm Stainless steel 1.2mm* 1.5mm 2.0mm * 1.5 mm-thick sheet is used as the material but the thickness is reduced to 1.2 mm during processing.

---
