L-bracket for gas bands
※For details of dimensions, please check the approval request diagram (PDF) below.
■Approval request diagram(PDF format)
A10543＿L-bracket for gas bands＿30L～100L.pdf
Adobe Reader of Adobe Systems Incorporated is necessary to see the approval request drawing (PDF format).

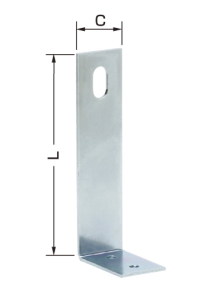

■Mounting bracket for gas band / L type
　
Part number A10543
L-bracket for gas bands		 Units (㎜)
Size
code		 L Sheet
thickness		 c
0013
0028
0032
0047
0051		 　30
　40
　50
　60
　70		 2.0
2.0
2.0
2.0
2.0		 25
25
25
25
25
0066
0085
0090		 　80
　90
100		 2.0
2.0
2.0		 25
25
25
