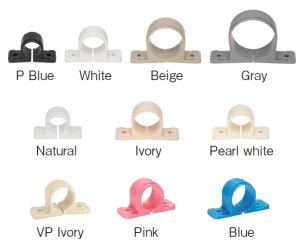

Polypropylene saddle

¦For details of dimensions, please check the approval request diagram (PDF) below.
¡Approval request diagram(PDF format)
EA10511QPolypropylene saddle for SGP pipe (white)-GP10 to GP50.pdf
EA10511QPolypropylene saddle for SGP pipe (ivory)-GP20.pdf
EA10511QPolypropylene saddle for copper pipe (natural)-CU15 to CU50.pdf
EA10511QPolypropylene saddle for coated steel pipe (ivory)-PC15 to PC40.pdf
EA10511QPolypropylene saddle for coated flexible pipe (white)-FT20.pdf
EA10511QPolypropylene saddle for VP pipe (white)-VP20.pdf
EA10511QPolypropylene saddle for VP pipe (beige)-VP40.pdf
EA10511QPolypropylene saddle for VP pipe (gray)-VP13 to VP50.pdf
EA10511QPolypropylene saddle for VP/drain pipe (ivory)-VP20 to VP40.pdf
EA10511QPolypropylene saddle for HIVP pipe (blue)-HI13 to HI50.pdf
EA10511QPolypropylene saddle for insulated polypropylene and crosslinked polyethylene pipe (pink)-HP13AHP16.pdf
EA10511QPolypropylene saddle for insulated polypropylene and crosslinked polyethylene pipe (blue)-HB13AHB16.pdf
Adobe Reader of Adobe Systems Incorporated is necessary to see the approval request drawing (PDF format).
¡Polypropylene bands for raised pipes

EPolypropylene saddle for SGP pipe (white)
EPolypropylene saddle for SGP pipe (ivory)
EPolypropylene saddle for copper pipe (natural)
EPolypropylene saddle for coated steel pipe (ivory)
EPolypropylene saddle for coated flexible pipe (white)
EPolypropylene saddle for VP pipe (white)
EPolypropylene saddle for VP pipe (beige)
EPolypropylene saddle for VP pipe (gray)
EPolypropylene saddle for VP/drain pipe (ivory)
EPolypropylene saddle for HIVP pipe (blue)
EPolypropylene saddle for insulated polypropylene and crosslinked polyethylene pipe (blue/pink)


Part number A10511 Polypropylene saddle Units (‡o)
Polypropylene saddle for SGP pipe (white)
Size code Size Applicable pipe outer diameter P L Applicable pedestal number Remarks
(Old size)
0575
0580
0594
0607
0611
GP10
GP15
GP20
GP25
GP32
17.3
21.7
27.2
34.0
42.7
41
41
48
56
65
62
62
67.5
79.5
90
1 to 5
1 to 5
6 to 7
8 to 9
10 to 11
G- 2
G- 4
G- 6
G- 9
G-11
0626
0645
GP40
GP50
48.6
60.5
75
95
100
120
12 to 13
14
G-12
G-14

£Top of page
Polypropylene saddle for SGP pipe (ivory)
Size code Size Applicable pipe outer diameter P L Applicable pedestal number Remarks
(Old size)
0650 GP20 27.2 48 67.5 6 to 7 ƒT-6

£Top of page
Polypropylene saddle for copper pipe (natural)
Size code Size Applicable pipe outer diameter P L Applicable pedestal number Remarks
(Old size)
0664
0679
0683
0698
0715
CU15
CU19
CU20
CU25
CU32
15.88
19.05
22.22
28.58
34.92
41
41
41
48
56
62
62
62
67.5
79.5
1 to 5
1 to 5
1 to 5
6 to 7
8 to 9
T- 1
T- 3
T- 5
T- 7
T- 9
0720
0734
CU40
CU50
41.28
53.98
65
75
90
100
10 to 11
12 to 13
T-11
T-13

£Top of page
Polypropylene saddle for coated steel pipe (ivory)
Size code Size Applicable pipe outer diameter P L Applicable pedestal number Remarks
(Old size)
0838
0842
0857
0861
0556
PC15
PC20
PC25
PC32
PC40
25.7
31.2
37.6
46.3
52.2
48
56
65
75
75
67.5
79.5
90
100
100
6 to 7
8 to 9
10 to 11
12 to 13
12 to 13
PC- 6
PC- 8
PC-10
PC-12
PC-40

£Top of page
Polypropylene saddle for coated flexible pipe (white)
Size code Size Applicable pipe outer diameter P L Applicable pedestal number Remarks
(Old size)
0970 FT20 20 41 62 1 to 5 ‚e-3

£Top of page
Polypropylene saddle for VP pipe (white)
Size code Size Applicable pipe outer diameter P L Applicable pedestal number Remarks
(Old size)
0819 VP20 26 48 67.5 6 to 7 C-6

£Top of page
Polypropylene saddle for VP pipe (beige)
Size code Size Applicable pipe outer diameter P L Applicable pedestal number Remarks
(Old size)
0823 VP40 48 75 100 12 to 13 A-12

£Top of page
Polypropylene saddle for VP pipe (gray)
Size code Size Applicable pipe outer diameter P L Applicable pedestal number Remarks
(Old size)
0749
0753
0768
0772
0787
VP13
VP16
VP20
VP25
VP30
18
22
26
32
38
41
41
48
56
65
62
62
67.5
79.5
90
1 to 5
1 to 5
6 to 7
8 to 9
10 to 11
V- 2
V- 4
V- 6
V- 8
V-10
0791
0804
VP40
VP50
48
60
75
95
100
120
12 to 13
14
V-12
V-14

£Top of page
Polypropylene saddle for VP/drain pipe (ivory)
Size code Size Applicable pipe outer diameter P L Applicable pedestal number Remarks
(Old size)
1215
1220
1234
1249
VP20
VP25
VP30
VP40
26
32
38
48
48
56
65
75
67.5
79.5
90
100
6 to 7
8 to 9
10 to 11
12 to 13

£Top of page
Polypropylene saddle for HIVP pipe (blue)
Size code Size Applicable pipe outer diameter P L Applicable pedestal number Remarks
(Old size)
0895
0908
0912
0927
0931
HI13
HI16
HI20
HI25
HI30
18
22
26
32
38
41
41
48
56
66
62
62
67.5
79.5
90
1 to 5
1 to 5
6 to 7
8 to 9
10 to 11
H- 2
H- 4
H- 6
H- 8
H-10
0946
0965
HI40
HI50
48
60
75
95
100
120
12 to 13
14
H-12
H-14
£Top of page
Polypropylene saddle for insulated polypropylene and crosslinked polyethylene pipe (blue/pink)
Size code Size Color Applicable pipe outer diameter P L Applicable pedestal number
1107
1111
1080
1094
HB13
HB16
HP13
HP16
Blue
Blue
Pink
Pink
28
33
28
33
48
56
48
56
67.5
79.5
67.5
79.5
6 to 7
8 to 9
6 to 7
8 to 9
* A product for heat insulation thickness 10mm is available.
