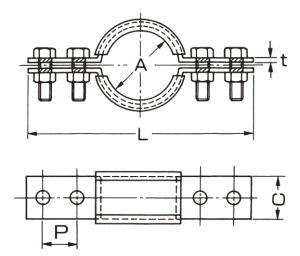

| ¦For details of dimensions, please check the approval request diagram (PDF)
below. |
|
|
|
 |
Adobe Reader of Adobe Systems Incorporated is necessary to see the approval
request drawing (PDF format). |
|
|

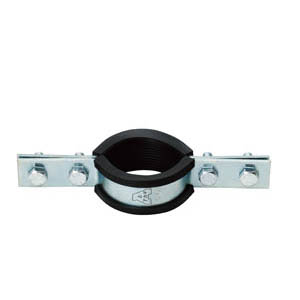

| ‘Floor band for copper pipe / With 3 mm rubber |
| @ |
| Part number A10412 Floor band for copper pipe (with rubber) |
Units (o) |
Size
code |
Diameter
size
(A) |
Nominal
diameter
(B) |
Applicable pipe
outer diameter |
t |
C |
Tightening bolt
Dia. ~ Length |
L |
P |
0011
0026
0045
0050
0064 |
@15A
@20A
@25A
@32A
@40A |
1/2
3/4
P
P 1/4
P 1/2 |
@15.88
@22.22
@28.58
@34.92
@41.28 |
3.2
3.2
3.2
3.2
3.2 |
25
25
25
25
25 |
M 8~25
M 8~25
M 8~25
M 8~25
M 8~25 |
146
152
159
168
174 |
30
30
30
30
30 |
0079
0083
0098
0115
0120 |
@50A
@65A
@80A
100A
125A |
Q
Q 1/2
R
S
T |
@53.98
@66.68
@79.38
104.78
130.18 |
3.2
4.5
4.5
4.5
4.5 |
25
25
25
25
32 |
M 8~25
M 8~30
M 8~30
M 8~30
M10~30 |
186
204
217
243
348 |
30
30
30
30
55 |
| 0134 |
150A |
U |
155.58 |
4.5 |
32 |
M10~30 |
374 |
55 |
|
|
