| ¦For details of dimensions, please check the approval request diagram (PDF)
below. |
|
|
|
 |
Adobe Reader of Adobe Systems Incorporated is necessary to see the approval
request drawing (PDF format). |
|
|

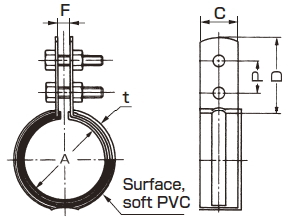

‘Electrically insulated lantern type vertical bands / Soft PVC-coated type
‘For SGP pipe
|
| Part number A10327 Dipped vertical band for SG pipe |
Units (o) |
| Size code |
Size
|
Nominal
diameter |
Applicable pipe
outer diameter |
|
b |
Tightening bolt
Dia. ~ Length |
D |
P |
F |
0019
0023
0038
0042
0057 |
SG-@15
SG-@20
SG-@25
SG-@32
SG-@40 |
1/2
3/4
P
P 1/4
P 1/2 |
@21.7
@27.2
@34.0
@42.7
@48.6 |
0.6
0.6
0.6
0.8
0.8 |
25
25
25
25
25 |
l 6~20
l 6~20
l 6~20
l 6~20
l 6~20 |
45
45
45
45
45 |
20
20
20
20
20 |
6
6
6
6
6 |
0061
0076
0095
0108
0112 |
SG-@50
SG-@65
SG-@80
SG-100
SG-125 |
Q
Q 1/2
R
S
T |
@60.5
@76.3
@89.1
114.3
139.8 |
0.8
1.0
1.0
1.0
3.2 |
25
32
32
32
32 |
l 6~20
l 6~20
l 6~20
l 6~20
l10~30 |
45
45
45
45
55 |
20
20
20
20
27 |
6
6
6
6
8 |
| 0127 |
SG-150 |
U |
165.2 |
3.2 |
32 |
l10~30 |
55 |
27 |
8 |
|
|
