Mini anti-vibration suspension

fitting A type

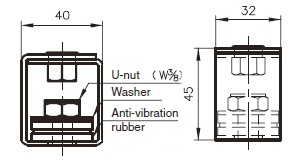

※For details of dimensions, please check the approval request diagram (PDF) below.
■Approval request diagram(PDF format)
・A10297_Mini anti-vibration suspension fitting A type_AD-314、315、316.pdf
Adobe Reader of Adobe Systems Incorporated is necessary to see the approval request drawing (PDF format).
Anti-vibration suspension fitting for pipes and equipment
/For lightweight objects

Part number A10297
Mini anti-vibration suspension fitting A type
Units (o)
Size
code
Model Static load constant
(kgf/cm)
Deflection
(mm)
Rubber
hardness
Load range
(kgf)
0018
0022
0037
AD-314
AD-315
AD-316
 71
117
173
0.4 to 2.8
0.5 to 2.7
0.5 to 2.7
 40°
 50°
 60°
3.0 to 20.0
6.0 to 32.0
9.0 to 47.0
